Tülle a Typ 1
- Beschreibung
- Zeichnungen
- Artikel
Tülle a Typ 1
Tülle a Typ 1

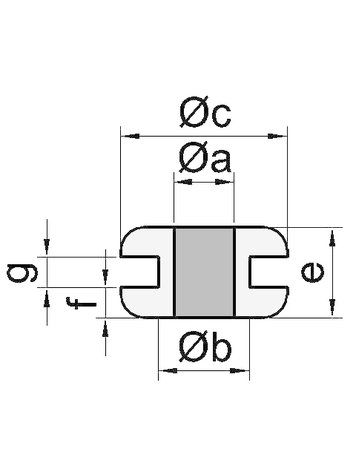

Zeichnungen
Artikel
| Code | Product | A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|---|---|---|
| RV3139 | ?sen | 10 | 12,5 | 16 | 6,5 | 2,5 | 3 | - | Offerte |
| RV3209 | ?sen | 10 | 12 | 16 | 8 | 2 | 3,5 | - | Offerte |
| RV3142 | ?sen | 10 | 13 | 16 | 6,5 | 2,5 | 1,5 | - | Offerte |
| RV2426 | ?sen | 10 | 14 | 18 | 10 | 3 | 4,5 | - | Offerte |
| RV2015 | ?sen | 10 | 14 | 18 | 11 | 3,5 | 3,5 | - | Offerte |
| RV5870 | ?sen | 11 | 14 | 17 | 6,5 | 1,5 | 3 | - | Offerte |
| RV2333 | ?sen | 11 | 15 | 18 | 8 | 2,5 | 2,5 | - | Offerte |
| RV4129 | ?sen | 11 | 16 | 20 | 7,5 | 2 | 3,2 | - | Offerte |
| RV3486 | ?sen | 11 | 16 | 22 | 5 | 2 | 1 | - | Offerte |
| RV683 | ?sen | 11 | 19 | 25 | 13,5 | 3 | 7,5 | - | Offerte |
| RV3390 | ?sen | 12,5 | 19,5 | 28 | 10 | 4,5 | 1,5 | - | Offerte |
| RV3086 | ?sen | 12,5 | 25 | 29 | 6,2 | 2,6 | 1 | - | Offerte |
| RV3480 | ?sen | 12,7 | 20,6 | 27 | 9,5 | 3,2 | 3,2 | - | Offerte |
| RV3132 | ?sen | 12 | 19 | 24 | 10 | 3 | 4 | - | Offerte |
| RV3948 | ?sen | 12 | 21 | 27 | 9,5 | 4 | 1,5 | - | Offerte |
| RV3659 | ?sen | 13 | 17 | 23 | 7 | 3 | 1,5 | - | Offerte |
| RV3144 | ?sen | 13 | 18 | 23 | 8 | 3,5 | 1,5 | - | Offerte |
| RV2013 | ?sen | 13 | 21 | 27 | 8 | 3,5 | 1,5 | - | Offerte |
| RV2957 | ?sen | 14 | 22 | 30 | 6 | 2,5 | 1,5 | - | Offerte |
| RV383 | ?sen | 15 | 19 | 30 | 14 | 3,5 | 6,5 | - | Offerte |
| RV6109 | ?sen | 15 | 32 | 42 | 18 | 5 | 12 | - | Offerte |
| RV9308 | ?sen | 15 | 35 | 60 | 6 | 2 | 2 | - | Offerte |
| RV5925 | ?sen | 16,5 | 24 | 30 | 11 | 3 | 5 | - | Offerte |
| RV1456 | ?sen | 16 | 23 | 31,5 | 9,5 | 4 | 0,8 | - | Offerte |
| RV3996 | ?sen | 16 | 24 | 30 | 11 | 4 | 3 | - | Offerte |
| RV11138 | ?sen | 18 | 30 | 36 | 6 | 2 | 2 | - | Offerte |
| RV106 | ?sen | 2,5 | 8 | 11 | 6 | 2,5 | 1 | - | Offerte |
| RV5593 | ?sen | 20 | 24 | 30 | 12 | 3 | 6 | - | Offerte |
| RV10102 | ?sen | 22 | 31 | 41 | 11 | 5 | 1,5 | - | Offerte |
| RV3788 | ?sen | 22 | 36 | 42 | 10 | 4 | 1,5 | - | Offerte |
| RV3983 | ?sen | 23 | 27 | 37 | 8 | 3 | 1,5 | - | Offerte |
| RV3331 | ?sen | 23 | 29 | 39 | 10 | 4,5 | 1,5 | - | Offerte |
| RV3387 | ?sen | 23 | 32 | 40 | 19 | 7,5 | 4 | - | Offerte |
| RV3393 | ?sen | 26 | 30 | 38 | 23,5 | 4 | 15 | - | Offerte |
| RV2461 | ?sen | 3 | 6,5 | 12 | 9 | 2 | 5 | - | Offerte |
| RV5334 | ?sen | 3 | 6 | 8 | 5 | 1,7 | 1,5 | - | Offerte |
| RV2916 | ?sen | 3 | 8 | 11,5 | 6 | 2,5 | 1 | - | Offerte |
| RV3713 | ?sen | 4,2 | 5,8 | 11 | 4,8 | 2,5 | 0,8 | - | Offerte |
| RV6010SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RV3449 | ?sen | 4,5 | 8 | 11 | 4 | 1,5 | 1 | - | Offerte |
| RV2111 | ?sen | 4 | 10 | 13 | 18,5 | 6,5 | 6 | - | Offerte |
| RV3073 | ?sen | 4 | 10 | 15 | 10 | 4,5 | 1,5 | - | Offerte |
| RV5777 | ?sen | 4 | 6,5 | 10 | 7 | 2 | 3 | - | Offerte |
| RV3990 | ?sen | 4 | 6 | 10 | 7 | 2 | 1 | - | Offerte |
| RV5890 | ?sen | 4 | 6 | 9 | 5 | 1,5 | 1,5 | - | Offerte |
| RV5783 | ?sen | 4 | 6 | 9 | 6,5 | 2 | 3 | - | Offerte |
| RV2484 | ?sen | 4 | 7 | 10 | 5 | 2 | 1 | - | Offerte |
| RV3134 | ?sen | 4 | 7 | 10,5 | 5 | 2,5 | 1 | - | Offerte |
| RV3140 | ?sen | 4 | 7 | 12 | 8 | 3 | 2 | - | Offerte |
| RV1151 | ?sen | 4 | 8 | 11 | 6,5 | 3 | 1 | - | Offerte |
| RV5284 | ?sen | 4 | 8 | 12 | 6 | 3 | 1 | - | Offerte |
| RV5889 | ?sen | 4 | 8 | 12 | 7 | 2,5 | 2 | - | Offerte |
| RV5420 | ?sen | 4 | 8 | 12 | 8 | 2 | 4 | - | Offerte |
| RV1232 | ?sen | 4 | 9,5 | 11 | 8,5 | 3,7 | 1 | - | Offerte |
| RV5248 | ?sen | 4 | 9 | 12 | 8 | 3,2 | 1,5 | - | Offerte |
| RV5163 | ?sen | 5,5 | 8 | 11 | 5 | 2 | 1,5 | - | Offerte |
| RV5341 | ?sen | 5,5 | 8 | 12 | 5,5 | 2 | 1,2 | - | Offerte |
| RV3593 | ?sen | 5,7 | 16 | 21 | 7 | 2 | 3 | - | Offerte |
| RV2447 | ?sen | 5 | 13,5 | 21 | 9 | 2 | 2,5 | - | Offerte |
| RV122 | ?sen | 5 | 20 | 23 | 16 | 7 | 2 | - | Offerte |
| RV1444 | ?sen | 5 | 7 | 10 | 6 | 2,5 | 1 | - | Offerte |
| RV1483 | ?sen | 5 | 7 | 10 | 8 | 3 | 2 | - | Offerte |
| RV5430 | ?sen | 5 | 7 | 11 | 7 | 3 | 2 | - | Offerte |
| RV2351 | ?sen | 5 | 7 | 12 | 10 | 6 | 1,5 | - | Offerte |
| RV693 | ?sen | 5 | 8,5 | 12,5 | 5 | 2 | 1 | - | Offerte |
| RV2290 | ?sen | 5 | 8 | 11 | 7 | 3 | 1 | - | Offerte |
| RV11027 | ?sen | 5 | 8 | 11,5 | 14 | 3 | 2 | - | Offerte |
| RV5799/1 | ?sen | 5 | 8 | 12 | 7,5 | 3,3 | 1 | - | Offerte |
| RV5799/2 | ?sen | 5 | 8 | 12 | 8 | 3,3 | 1,5 | - | Offerte |
| RV3729 | ?sen | 5 | 8 | 13 | 7,5 | 2 | 3,5 | - | Offerte |
| RV399 | ?sen | 5 | 9 | 14 | 6 | 2,5 | 1 | - | Offerte |
| RV1316 | ?sen | 6,5 | 11,5 | 15 | 7,5 | 3 | 1,3 | - | Offerte |
| RV4146 | ?sen | 6 | 10 | 13 | 6 | 2 | 2 | - | Offerte |
| RV5271 | ?sen | 6 | 10 | 13 | 7 | 3 | 1 | - | Offerte |
| RV358 | ?sen | 6 | 10 | 13 | 8 | 3,5 | 1,5 | - | Offerte |
| RV2887 | ?sen | 6 | 11 | 16 | 10,5 | 4,5 | 1,5 | - | Offerte |
| RV3141 | ?sen | 6 | 12 | 18 | 9 | 4 | 2,5 | - | Offerte |
| RV6027 | ?sen | 6 | 18 | 22 | 10 | 2 | 2 | - | Offerte |
| RV2370 | ?sen | 6 | 19 | 27 | 8 | 2,5 | 2,5 | - | Offerte |
| RV3673 | ?sen | 6 | 21 | 27 | 8 | 3,5 | 1,5 | - | Offerte |
| RV3681 | ?sen | 6 | 25,5 | 31,5 | 8 | 3,5 | 1,5 | - | Offerte |
| RV2679 | ?sen | 6 | 8,5 | 15 | 10 | 4 | 2,5 | - | Offerte |
| RV5827 | ?sen | 6 | 9,5 | 13 | 6 | 1,5 | 2 | - | Offerte |
| RV3135 | ?sen | 6 | 9,5 | 13 | 6 | 2 | 2,5 | - | Offerte |
| RV5884 | ?sen | 6 | 9 | 14 | 7,2 | 2,5 | 2,5 | - | Offerte |
| RV5566 | ?sen | 7,5 | 12 | 16 | 8 | 3,2 | 1,5 | - | Offerte |
| RV5878 | ?sen | 7,5 | 14 | 20 | 8 | 3,2 | 1,5 | - | Offerte |
| RV5299 | ?sen | 7 | 12 | 16 | 8 | 3,2 | 1,5 | - | Offerte |
| RV3147 | ?sen | 7 | 8,5 | 12,5 | 6 | 2,5 | 1,5 | - | Offerte |
| RV3146 | ?sen | 7 | 8,5 | 15 | 8 | 2,5 | 1,5 | - | Offerte |
| RV57 | ?sen | 8 | 10,5 | 14,5 | 10 | 3 | 4 | - | Offerte |
| RV3148 | ?sen | 8 | 10 | 14 | 5,5 | 2 | 4 | - | Offerte |
| RV136 | ?sen | 8 | 10 | 14 | 6 | 2,3 | 1,5 | - | Offerte |
| RV1366 | ?sen | 8 | 10 | 15 | 13 | 4 | 5,5 | - | Offerte |
| RV1210 | ?sen | 8 | 10 | 15 | 8,5 | 3 | 2 | - | Offerte |
| RV5577 | ?sen | 8 | 11,1 | 14,3 | 6,4 | 2,4 | 1,6 | - | Offerte |
| RV2750 | ?sen | 8 | 11 | 13 | 10 | 3 | 4 | - | Offerte |
| RV3745 | ?sen | 8 | 11 | 14 | 10 | 3 | 3 | - | Offerte |
| RVB607SILICONEN | ?sen | - | - | - | - | - | - | - | Offerte |
| RV3814 | ?sen | 8 | 12 | 20 | 5 | 2 | 1 | - | Offerte |
| RV1694 | ?sen | 8 | 25 | 30 | 14 | 6 | 2 | - | Offerte |
| RV1387 | ?sen | 9,5 | 13,5 | 19 | 11 | 3 | 4,5 | - | Offerte |
| RV2647 | ?sen | 9,5 | 16,5 | 21 | 6 | 2 | 2 | - | Offerte |
| RV569 | ?sen | 9,5 | 16 | 22 | 8 | 3 | 1,5 | - | Offerte |
| RV3110 | ?sen | 9 | 12 | 16 | 7 | 3 | 1,5 | - | Offerte |
| RV3448 | ?sen | 9 | 13 | 18 | 5 | 2 | 1 | - | Offerte |
| RV2512 | ?sen | 9 | 15 | 18 | 7,5 | 3 | 2 | - | Offerte |
| RVB5180EPDM | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB147SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB3845SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RV146 | ?sen | 1,8 | 6 | 9 | 6,4 | 1,8 | 2,8 | - | Offerte |
| RVB5926EPDM | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB51SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RV51SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB3654SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RV5161SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB4113SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB3450SBR | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB5577SILICONEN | ?sen | - | - | - | - | - | - | - | Offerte |
| RVB5874EPDM | ?sen | - | - | - | - | - | - | - | Offerte |
| RV 3486 | ?sen | 5 | 16 | 22 | 5 | 2 | 1 | - | Offerte |
| RV 5890 | ?sen | 6 | 9 | - | 1,5 | 1,5 | - | - | Offerte |
